New Installation

Egg Store, Lacock, UK

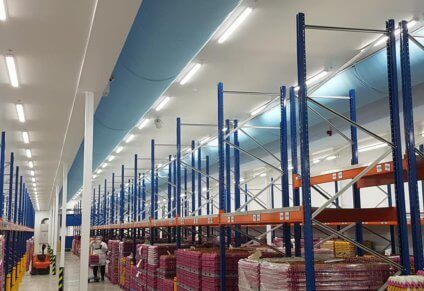

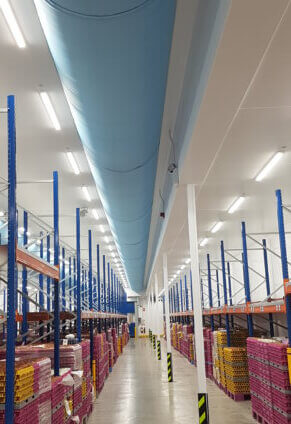

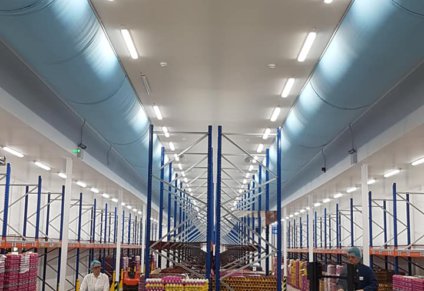

This egg store facility was reconstructed at the beginning of 2018. A new HVAC system with Prihoda fabric diffusers was part of the renovation plan. Taking into account the limited space at the warehouse, segment diffusers attached directly to the ceiling with reinforced strips inserted into aluminium profiles were the ideal option for this application. Air is distributed from the installation at a height of 4.5 m through uniform micro-perforations combined with sequential 4 mm perforations.

BASIC PARAMETERS

  • Available airflow: 17.000 m3/h
  • Diameter: SG 1.250x450 mm
  • Length of diffusers: 128 m
  • Material: PMS LB

17.000 m3/h

of air passes through our diffusers

128 m

of diffusers have been installed

120 Pa

pressure is harbored in our diffusers
