Installation

EASY AND FAST ASSEMBLY

Installation types

We offer a solution for every situation. Everything is tested by our highly qualified team of developers in a modern testing chamber. We customize all of our work and we will be happy to satisfy all of your requirements for other equipment, which is not mentioned here.

1

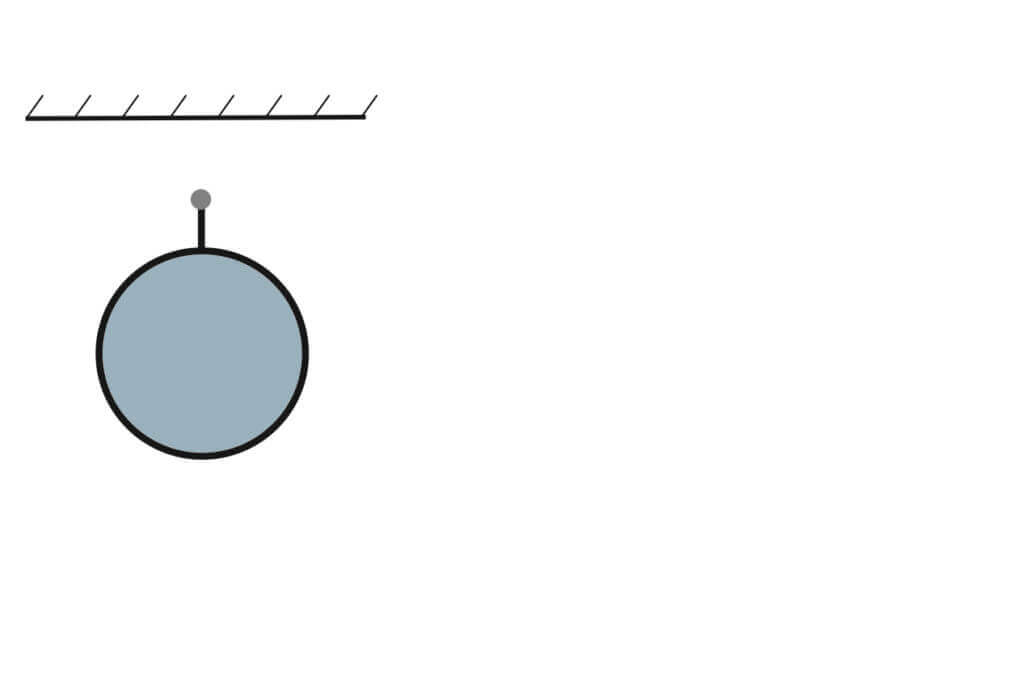

Installation of a round diffuser on a wire, with hooks, single suspension (other equipment: D, F, K, M)

2

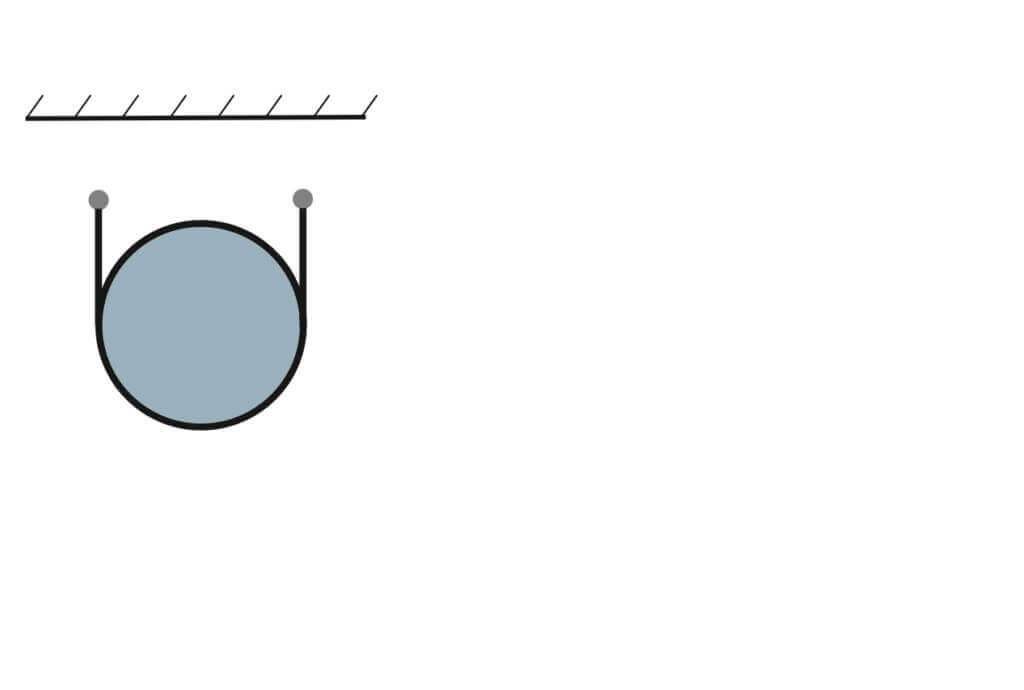

Installation of a round diffuser on a wire, with hooks, double suspension (other equipment D, F, K, M)

3

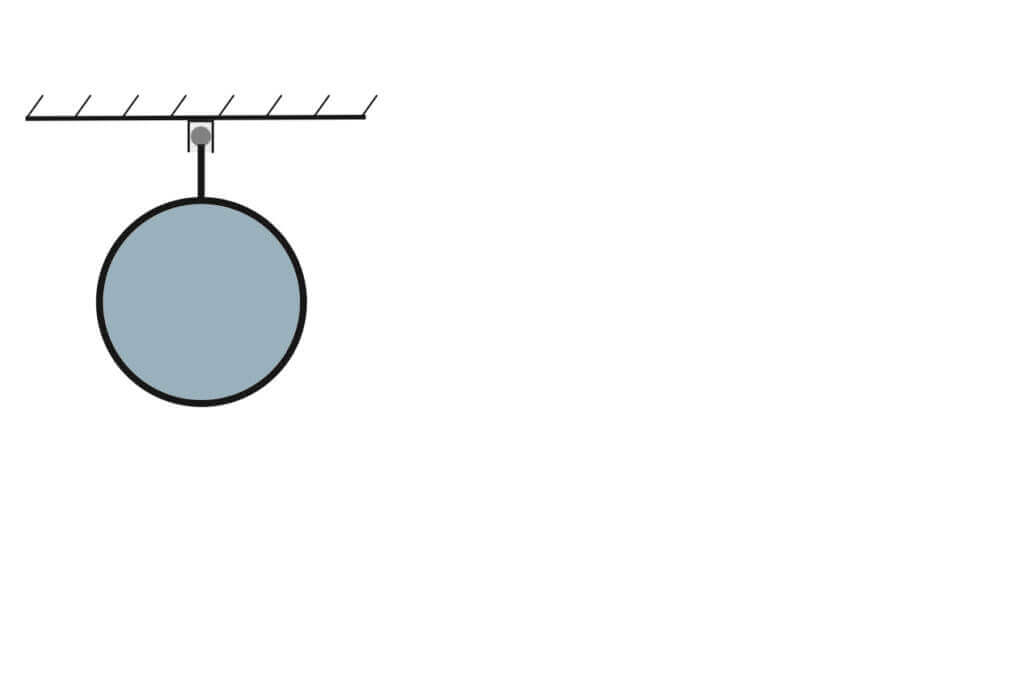

Installation of a round diffuser in the profile fastened directly to the ceiling or using a Velcro (other equipment A, B, C, G, J, H, L)

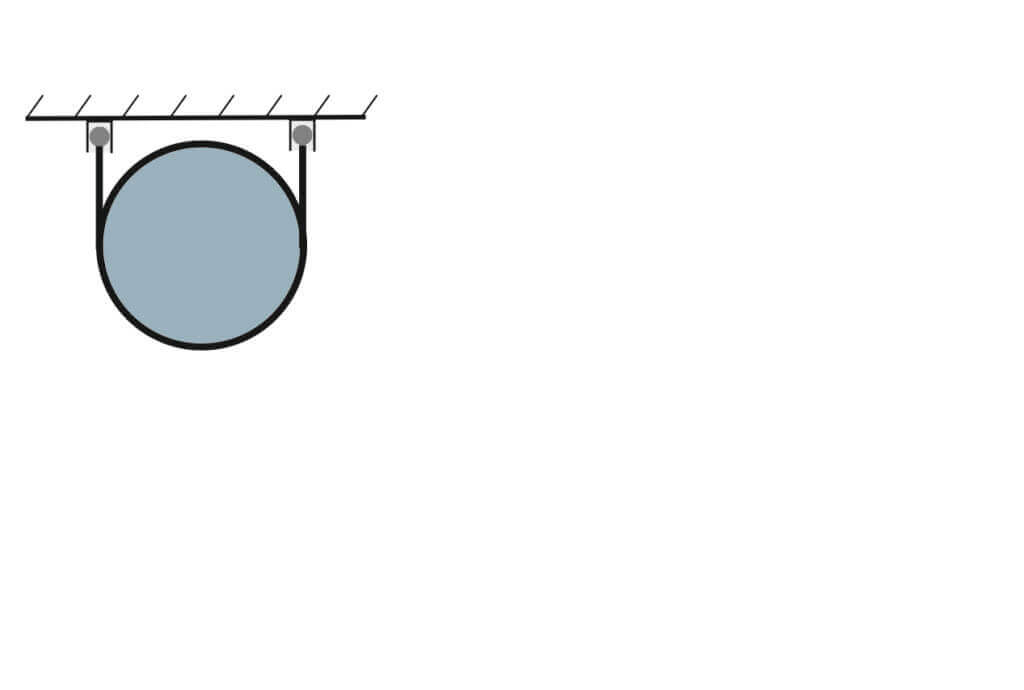

4

Installation of a round diffuser in the profile fastened directly to the ceiling, double suspension (other equipment: B, C, G)

5

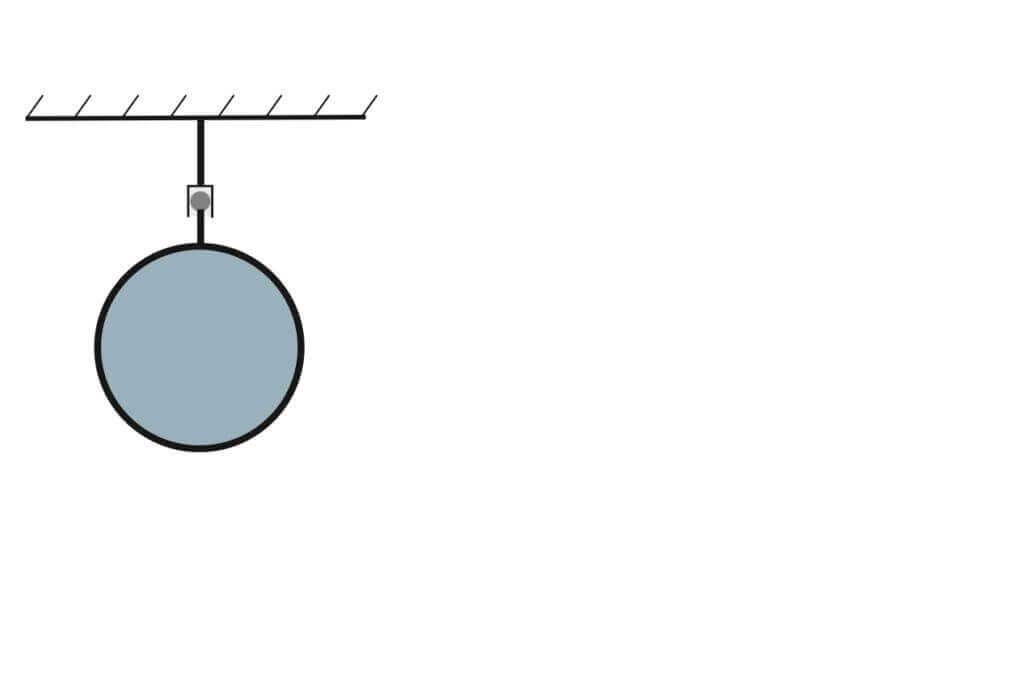

Installation of a round diffuser on suspended profiles, single suspension (other equipment: A, B, C, G, I, D, E, F, K, L, M)

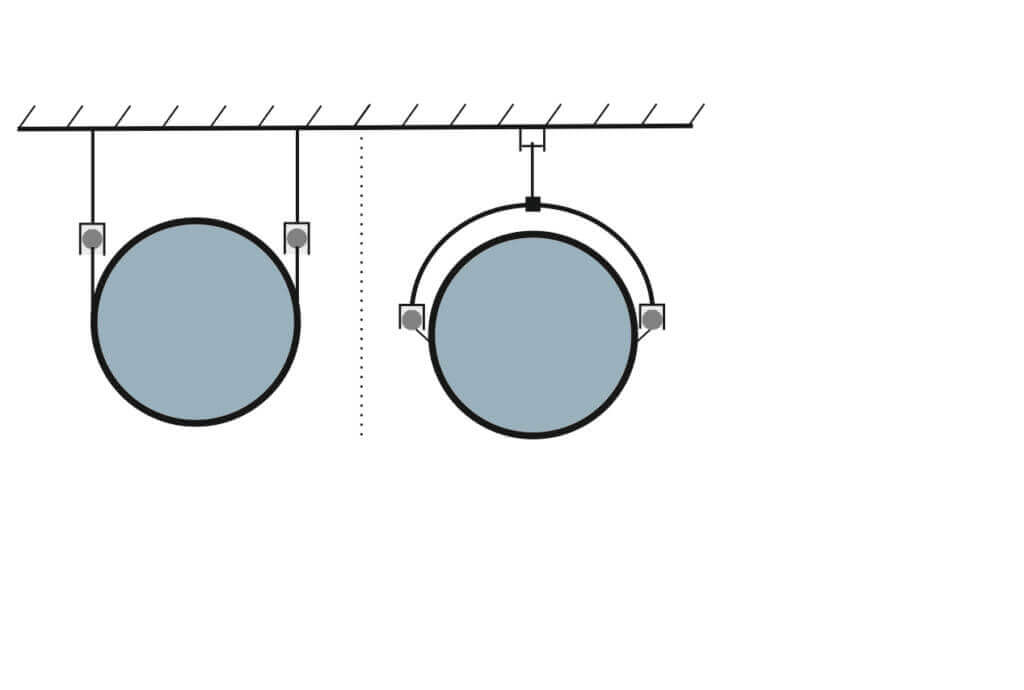

6

Installation of a round diffuser on suspended profiles, double suspension or suspension on an arc hinge (other equipment: A, B, C, G, I, D, E, F, K, L, M, N)

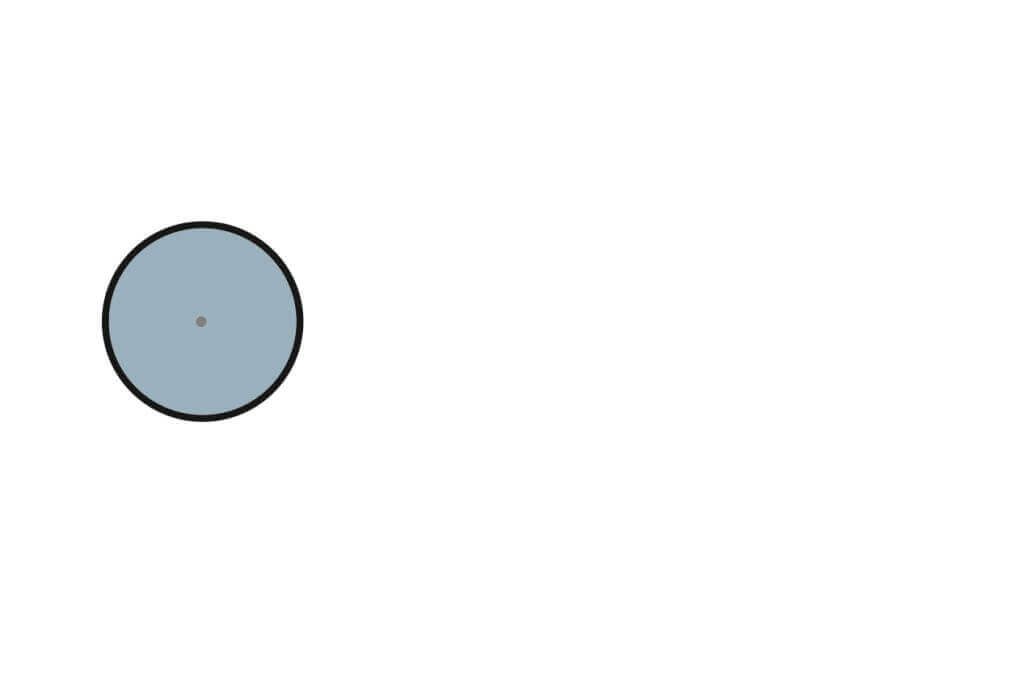

7

Stretcher in a blind flange – can be added to any other installation (other equipment: D, F, H)

8

Installation of a semi-circular diffuser in a profile fastened directly to the ceiling or using a Velcro (other equipment: A – always triangular cross section, B, C, G, L, H, J)

9

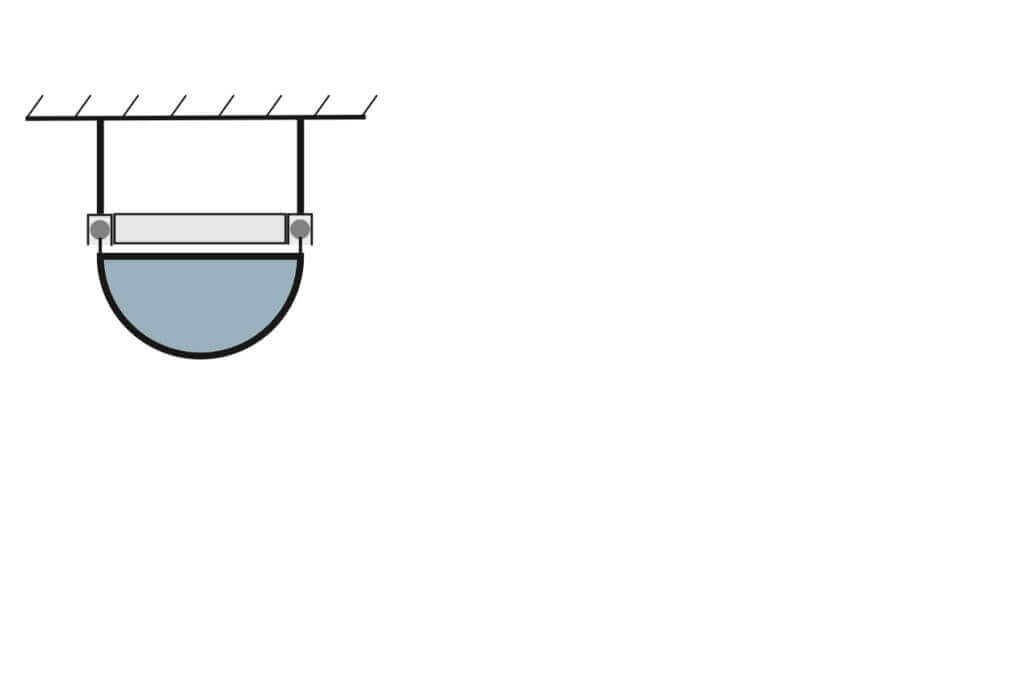

Installation of a semi-circular diffuser on suspended profiles, double suspension, crossbars (other equipment: A, D, E, F, K, L, M)

10

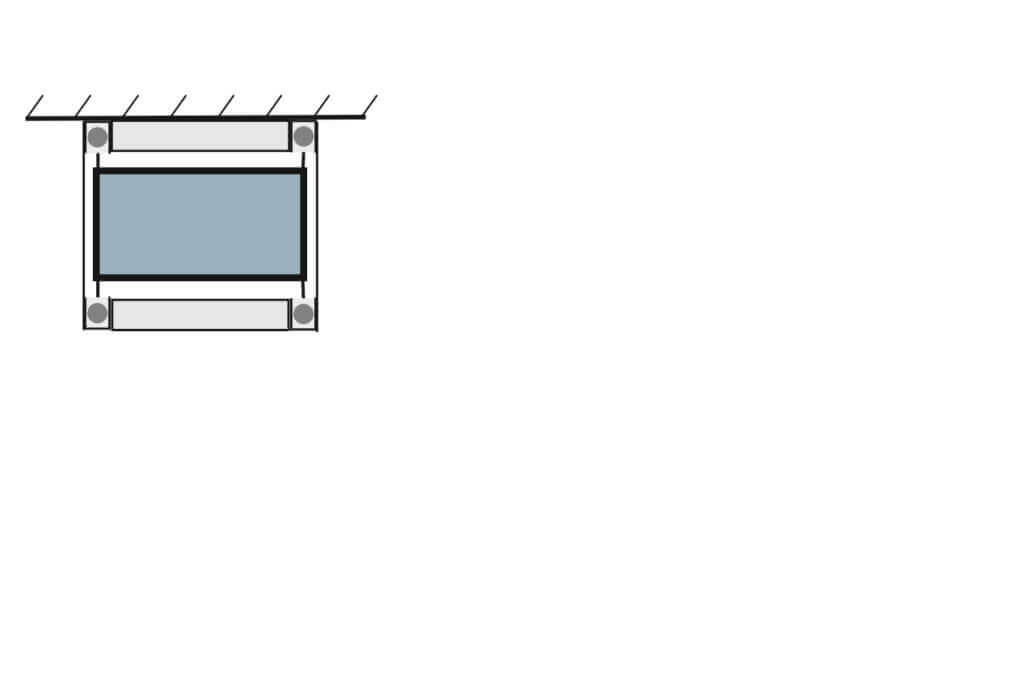

Installation of a square diffuser directly to the ceiling (other equipment: A, L)

11

Installation of a suspended square diffuser (other equipment: A, E, K, L, M)


Additional equipment

HOOK

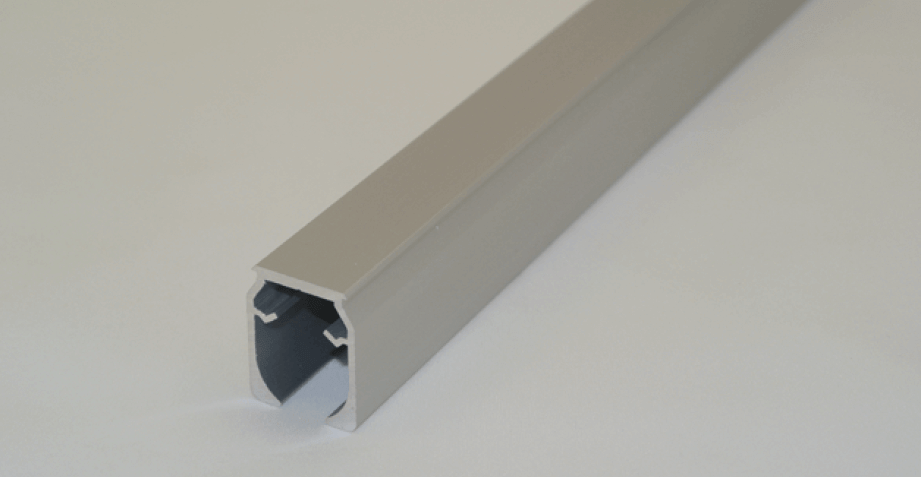

ALUMINIUM PROFILE

PLASTIC COATED WIRE (GALV.) AND GALVANIZED MOUNTING MATERIAL

A - ENLARGED STRIP

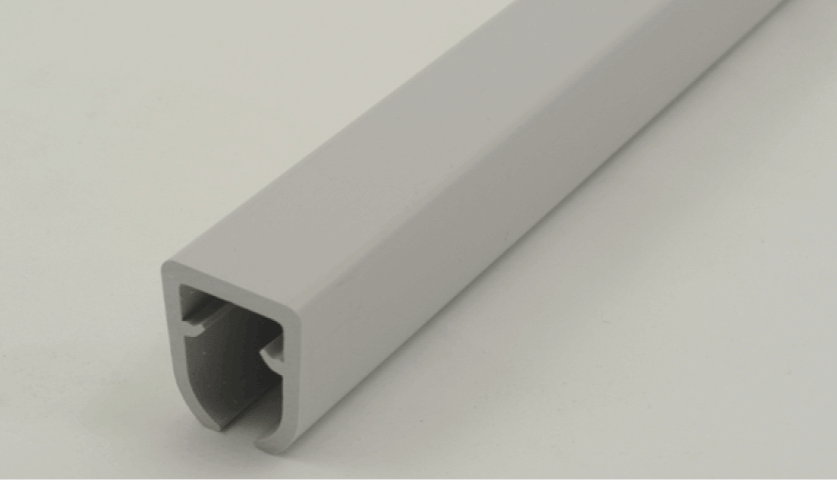

B - PLASTIC PROFILE

C - ALUMINIUM PROFILE WITH HANGERS

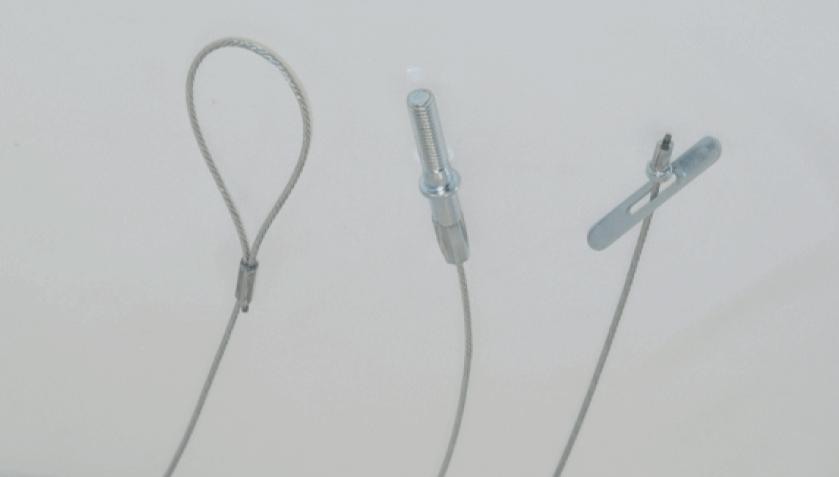

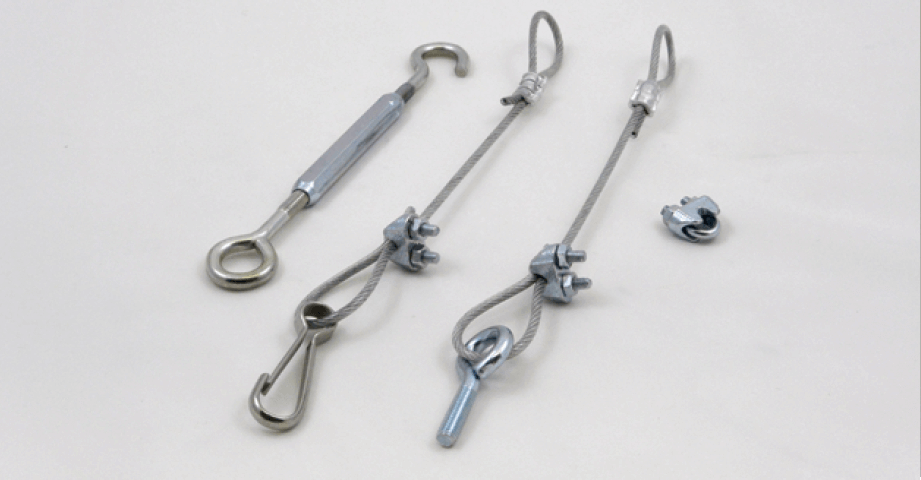

D - PLASTIC COATED WIRE (GALV.) AND GALVANIZED MOUNTING MATERIAL

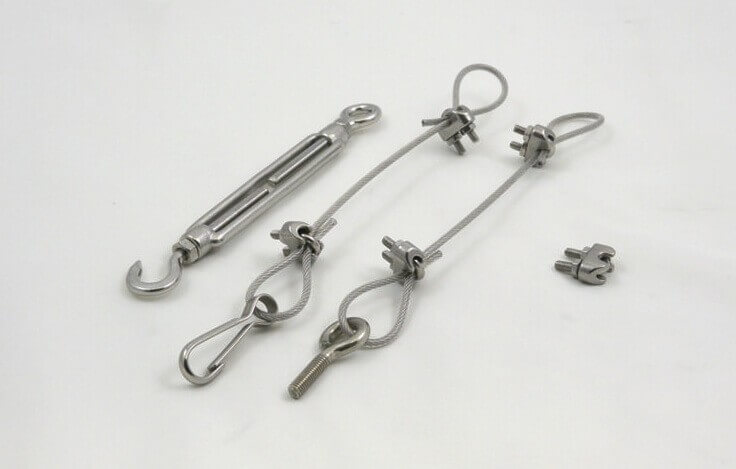

F - PLASTIC COATED WIRE (GALV., STAIN.) AND STAINLESS MOUNTING MATERIAL

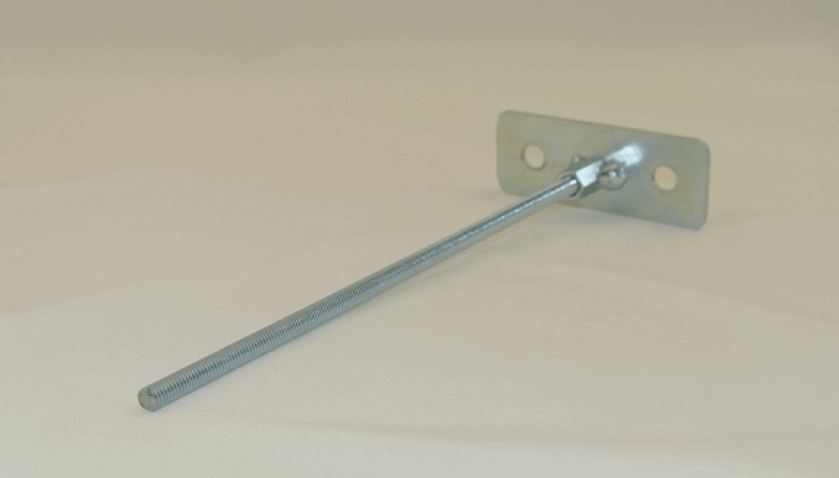

E - THREADED BAR

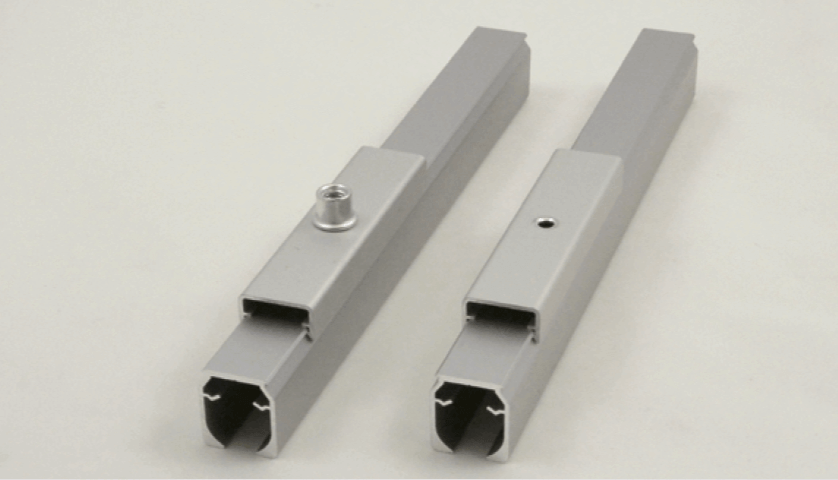

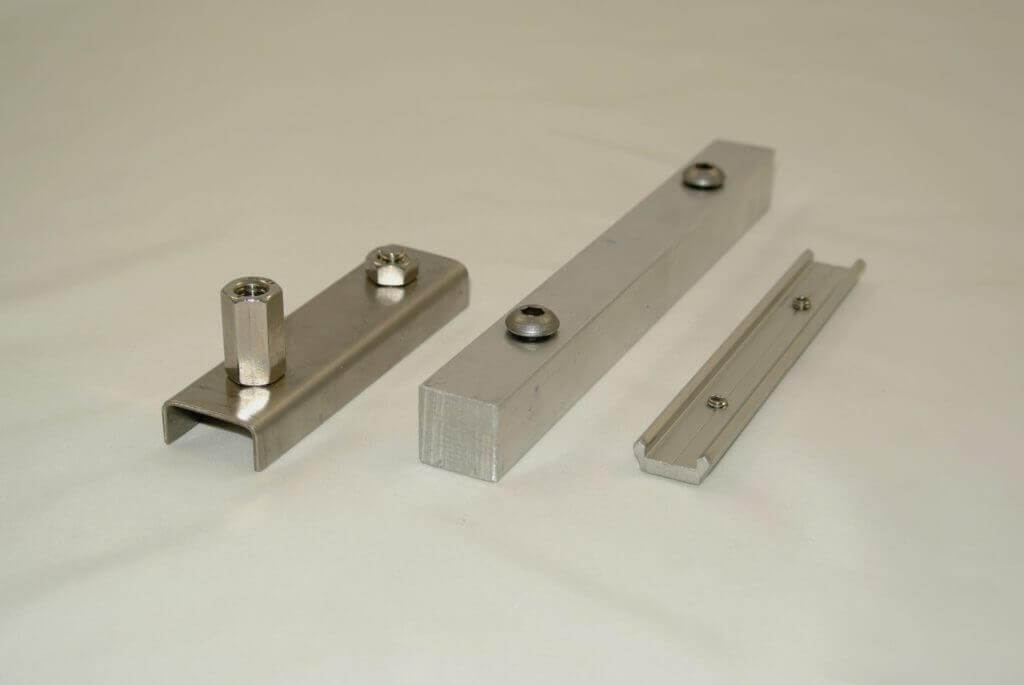

PROFILE CONNECTORS

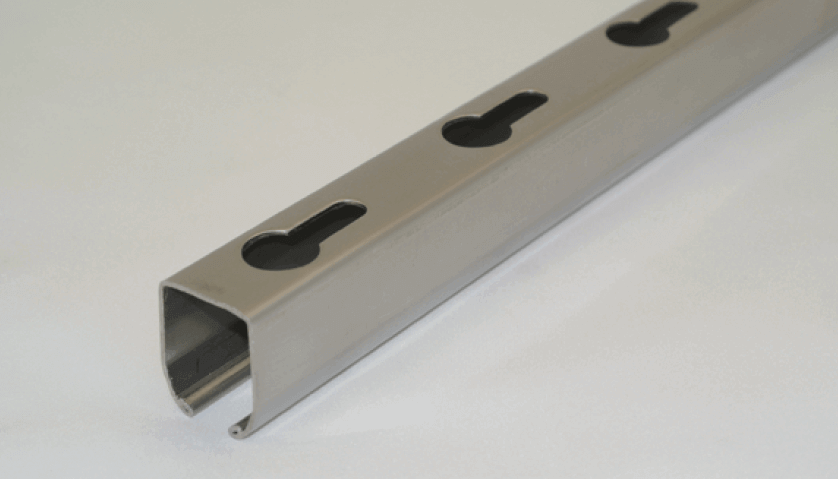

G - STAINLESS PROFILE

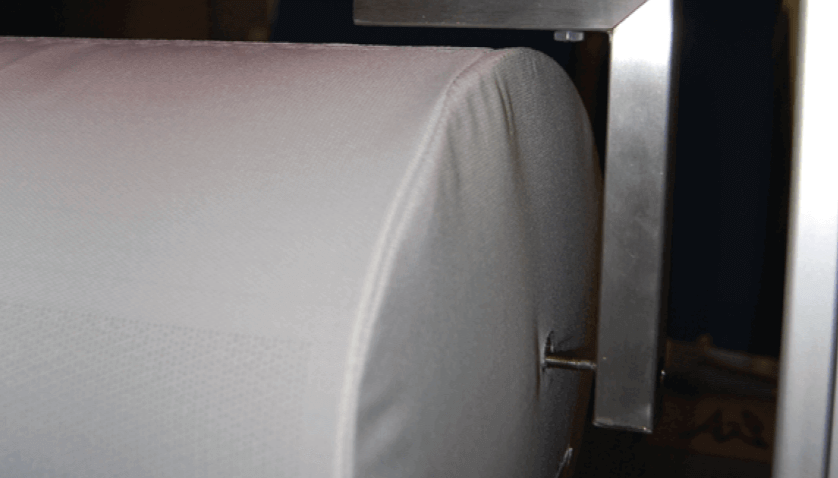

H - TENSIONER AT BLANK END

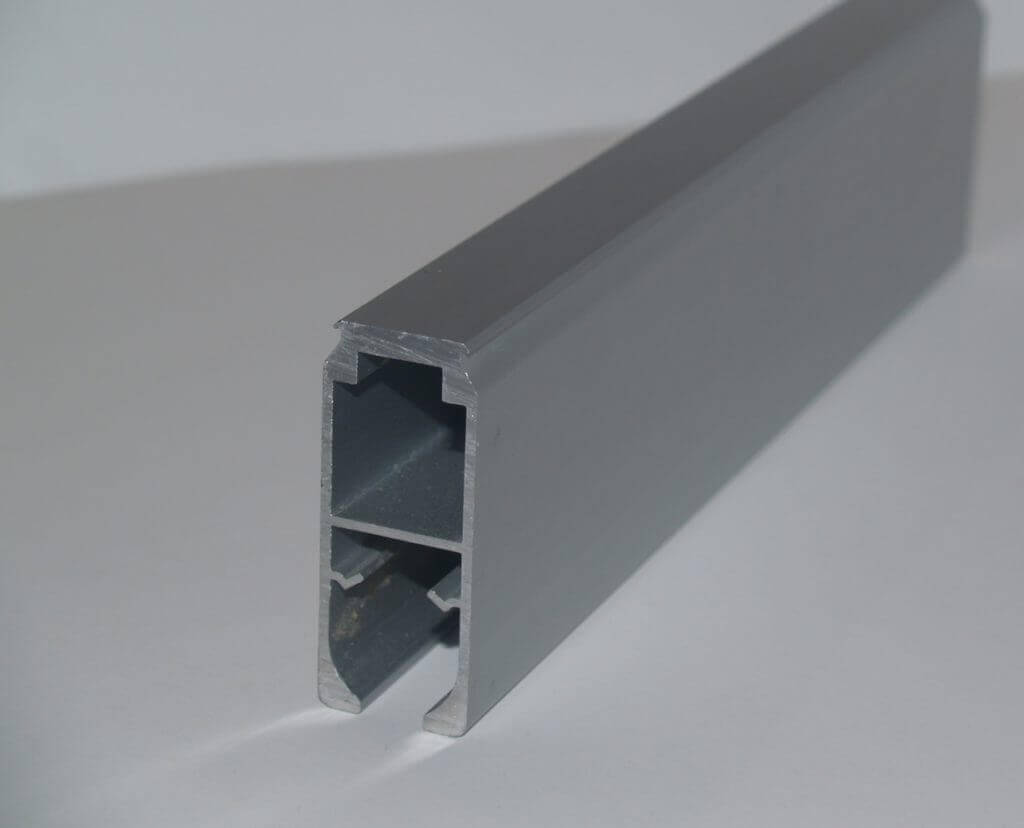

I - REINFORCED ALUMINIUM PROFILE

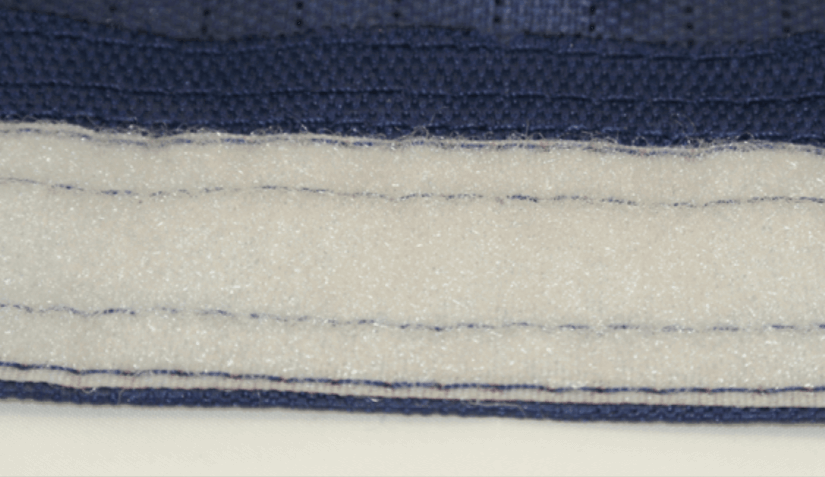

J - VELCRO

K - GALVANIZED CHAIN

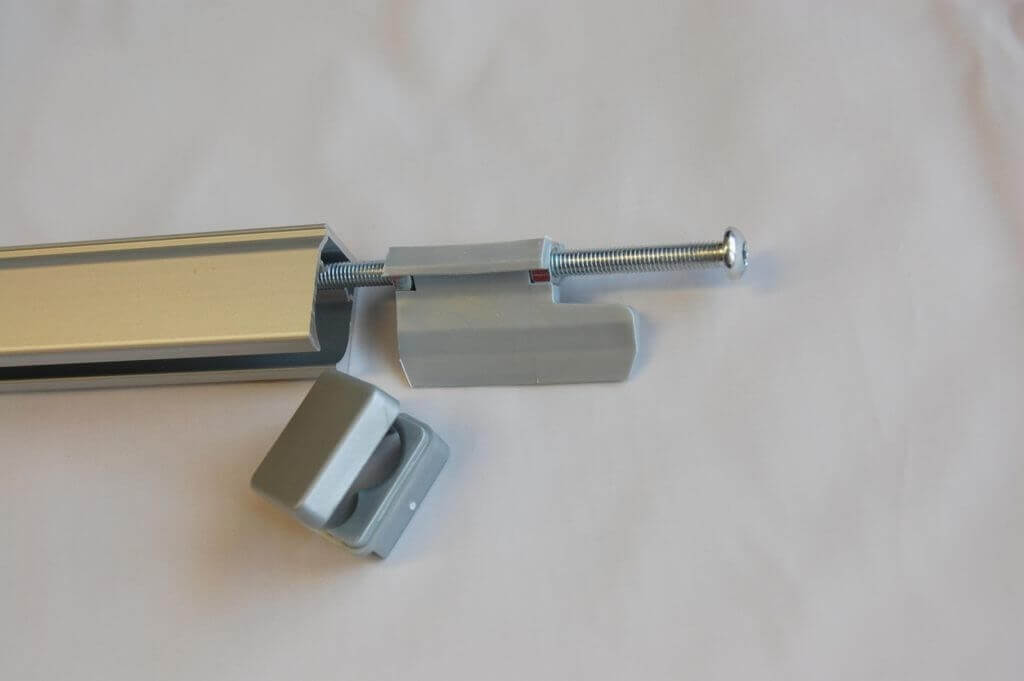

L - SCREW TENSIONER IN THE PROFILE

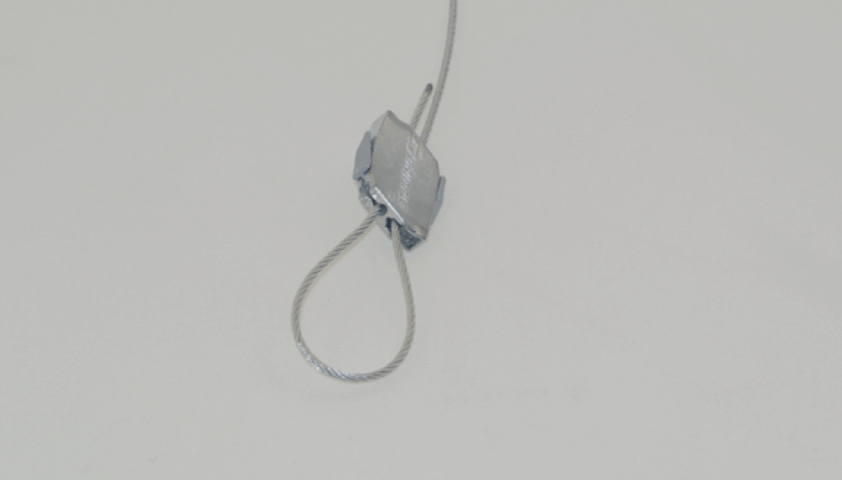

M - GRIPPLE HANGERS - UPPER PARTS

M - GRIPPLE HANGERS - LOWER PART

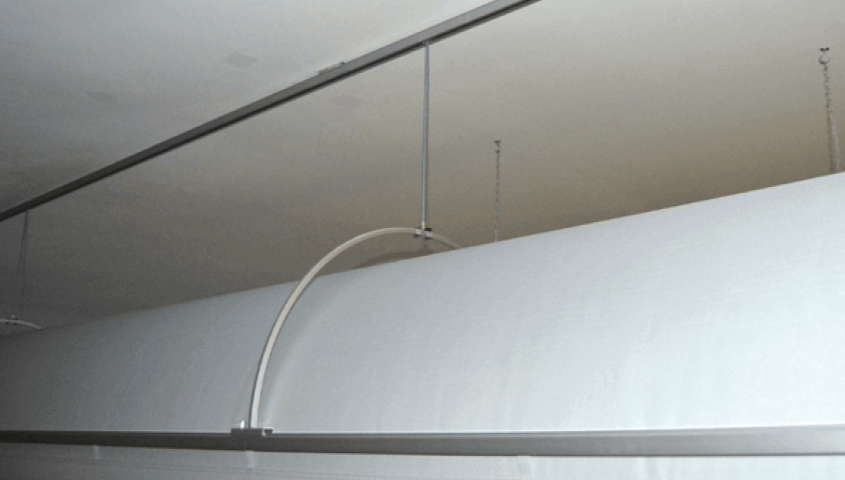

N - ARCH HANGER OF PROFILES
